20-bu 3-Point Hitch MCS

Making Collection Simple

Whether you’re collecting grass clippings in the summer, or gathering leaves in the fall, a Material Collection System (MCS) can greatly enhance your productivity. Now, the John Deere 20-bushel 3-Point Hitch MCS for 1 and 2 Family Compact Utility Tractors brings about a whole new meaning to the acronym “MCS”: Making Collection Simple.

Read more...

Features
  • 20-bushel hopper provides large capacity for long periods of mowing

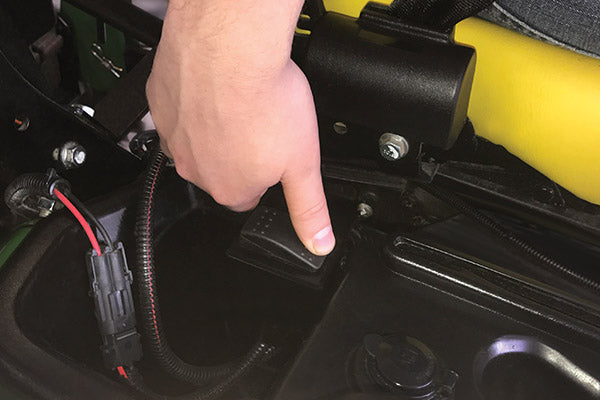

  • Dump-from-seat push-button unloading for clean and easy operation

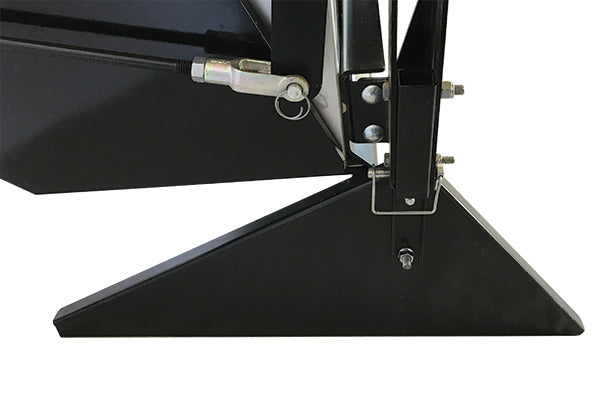

  • Two integrated stands make storage fast and convenient
  • iMatch™ compatibility for easy hookup and removal in seconds

Specifications

Hopper

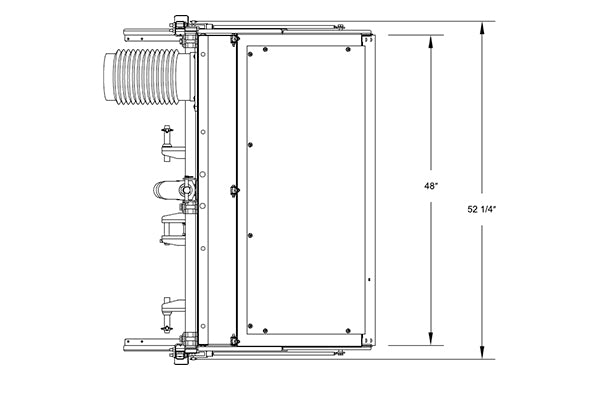

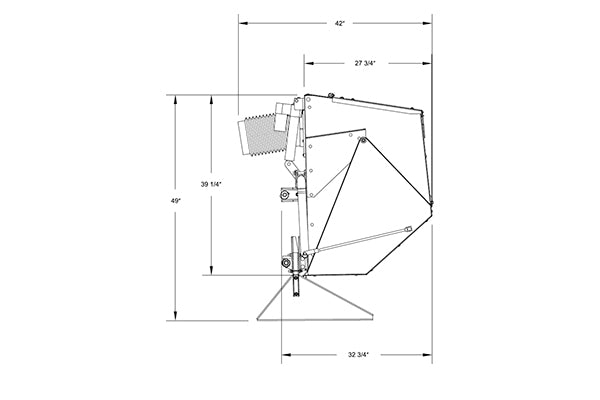

Width 48 in. (121 cm)
Length 27 in. (69 cm)
Depth 39 in. (99 cm)
Capacity 20 bu. (705 L)
25 cu. ft. (0.7 m³)
Weight Empty: 225 lb (102 kg)
Ground Clearance 4 1/4 in. (11 cm) (Distance between lower 3-pt pins to bottom of hopper)

Materials

Hopper 1/16 in. (1.58 mm) aluminum
Hopper Gate 16 ga. (1.5 mm) steel
Lid 1/16 in. (1.58 mm) perforated aluminum with fabric cover
Chute Polyethylene

Requirements and Compatibility
Required John Deere Parts Power Flow Blower Assembly for associated mower deck
Optional: iMatch Bushing Kit (LP19969) to convert standard Category 1 3-point hitch pins for use with iMatch Quick Hitch

Tractor Compatibility

John Deere 1 Family 1023E, 1025R
John Deere 2 Family 2025R
(Model Year 2018 - Current)

What's Included
  • 20-bushel (705-L), 25 cu ft (0.7 m3) aluminum hopper
  • Two integrated metal storage stands
  • Two-piece plastic chute with Fill-Minder™ Indicator
  • Relocation brackets for ROPS lights
  • SMV Sign
  • Operator’s Manual
